PyGlobe Coordinate Systems & Transformation Pipeline

PyGlobe Coordinates

1. Overview of Coordinate Systems

Coordinate systems used in this widget:

  1. Geographic (WGS84) – latitude, longitude, altitude
  2. ECEF (Earth-Centered Earth-Fixed) – 3D Cartesian
  3. View / Camera Space – created via gluLookAt
  4. Screen Space (NDC + pixel coordinates) – post-projection
  5. TMS Tile Space - Map tiles
WGS84 -> ECEF -> View Space -> Clip -> NDC -> Screen

2. Geographic Coordinates (WGS84)

Lat/Lon/Alt

  • lat ∈ [−90°, +90°]
  • lon ∈ [−180°, +180°]
  • alt in meters above mean sea level

Used for:

  • Tile boundaries
  • Camera spherical location
  • Scene objects defined on Earth’s surface

3. ECEF (Earth-Centered Earth-Fixed)

A 3D Cartesian coordinate system:

  • Origin at Earth center
  • +Z axis through the North Pole
  • +X axis at longitude 0°
  • +Y axis at longitude +90°

Units: meters

The globe and scene objects are stored in ECEF.

3.1 Geographic → ECEF

lla_to_ecef(lat, lon, alt)

r = earth_radius + alt
x = r * cos(lat) * cos(lon)
y = r * cos(lat) * sin(lon)
z = r * sin(lat)

Used for:

  • Tile geometry vertices
  • Object placement
  • Any conversion from Earth-based coordinates to world coordinates

spherical_to_ecef(lat, lon, r)

Used specifically for camera placement:

x = r * cos(lat) * cos(lon)
y = r * cos(lat) * sin(lon)
z = r * sin(lat)

Where r = distance from Earth center.

4. View / Camera Space

Produced via gluLookAt, which computes the camera basis vectors and transforms world coordinates into camera-relative coordinates.

Camera setup

eye    = (cam_x, cam_y, cam_z)
center = (0, 0, 0)      // always look at Earth center
up     = (0, 0, 1)      // world Z axis

Camera orientation:

  • Forward = −Z
  • Right = +X
  • Up = +Y

5. Screen Space

After projection (via gluPerspective):

  • Clip Space: Normalized Device Coordinates (NDC)
  • NDC: Pixel coordinates

Ranges:

  • NDC x,y,z ∈ [−1, +1]
  • Screen x ∈ [0, viewport_width]
  • Screen y ∈ [0, viewport_height]

6. Camera Ray Construction (Inverse Transform)

The path for mouse picking:

Screen -> NDC -> Camera Space Ray -> ECEF Ray

mouse_to_ray(mouse_x, mouse_y)

1. Screen → NDC

ndc_x = (2 * mx) / width  - 1
ndc_y = 1 - (2 * my) / height

2. NDC → Camera Space

ray_cam_x = ndc_x * aspect * tan(fov/2)
ray_cam_y = ndc_y * tan(fov/2)
ray_cam_z = -1

3. Camera Space → World (ECEF)

Uses the camera basis vectors:

forward = normalize(center - eye)
right   = normalize(cross(forward, up))
up      = normalize(cross(right, forward))

ray_world = ray_cam_x * right +
            ray_cam_y * up +
            ray_cam_z * forward

Outputs:

  • ray_origin = camera position in ECEF
  • ray_direction (normalized)

Used for:

  • Interaction picking
  • Tile selection
  • Object hit testing

7. Local ENU Tangent Frame

The ENU frame (East-North-Up) is a local tangent plane at a specific point on Earth.

  • Used for orienting objects relative to surface

7.1 Basis Vectors (in ECEF)

East  = [-sin(lon),              cos(lon),              0]
North = [-sin(lat)*cos(lon), -sin(lat)*sin(lon),  cos(lat)]
Up    = [ cos(lat)*cos(lon),  cos(lat)*sin(lon),  sin(lat)]

7.2 ENU → ECEF Transformation Matrix

R = [ East | North | Up ]
ecef_vec = R @ enu_vec

Columns of R:

  • Column 0: East
  • Column 1: North
  • Column 2: Up

8. Constants & Parameters

Earth Model

  • Earth radius = 6,371,000 m
  • Spherical WGS84 approximation

Camera

  • Default distance ≈ 20,000,000 m
  • FOV = 45 degreees
  • Near = 100 km
  • Far = 50,000 km

Tiles

  • TMS / OSM format
  • Zoom levels 3–8

9. Visual Reference Diagrams

PyGlobe Coordinates

9.1 ECEF Axes

  • +X: Longitude 0°
  • +Y: Longitude +90°
  • +Z: North pole
  • Earth centered

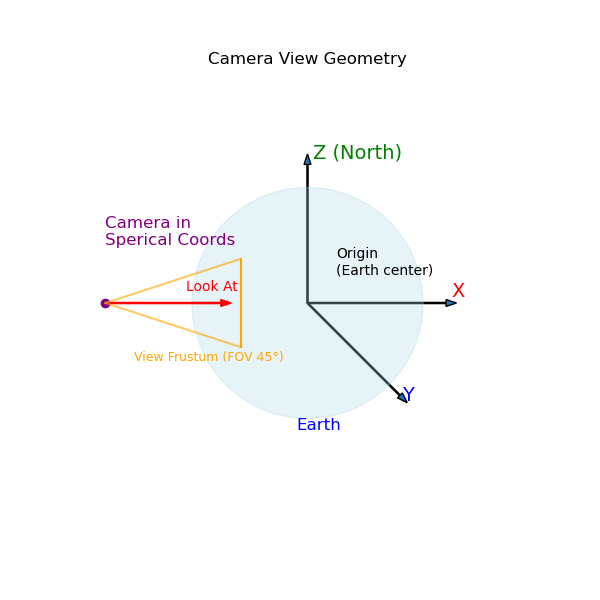

9.2 Camera View Geometry

  • Camera in spherical position
  • Always looking at Earth center
  • View frustum with 45° FOV

10. Pipeline Summary

Rendering Pipeline

  1. Define geometry in lat/lon/alt
  2. Convert to ECEF
  3. Apply ModelView transforms -> View Space
  4. Apply Projection -> NDC -> Screen

User Interaction Pipeline

  1. Mouse click in Screen space
  2. Convert to NDC
  3. Construct ray in Camera Space
  4. Transform ray to ECEF
  5. Perform intersection tests in ECEF
